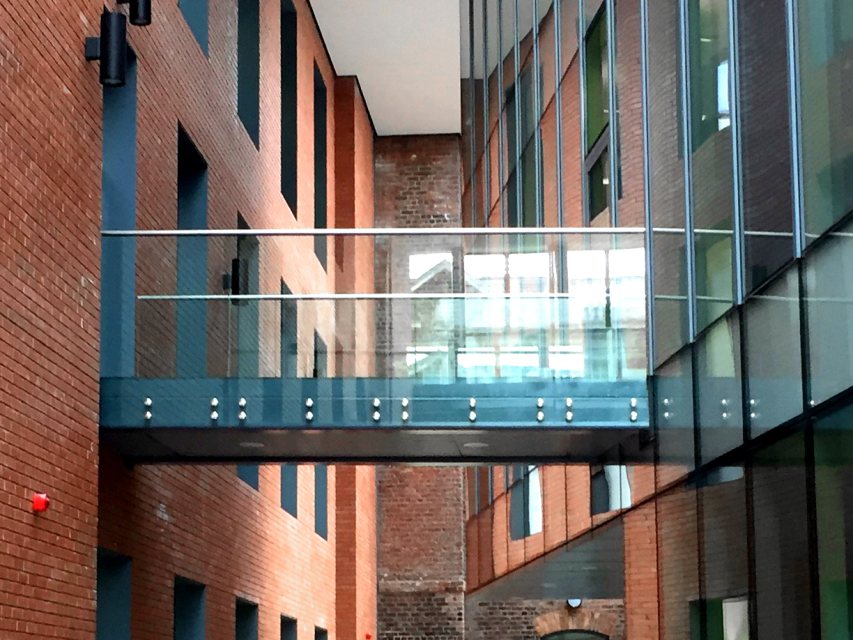

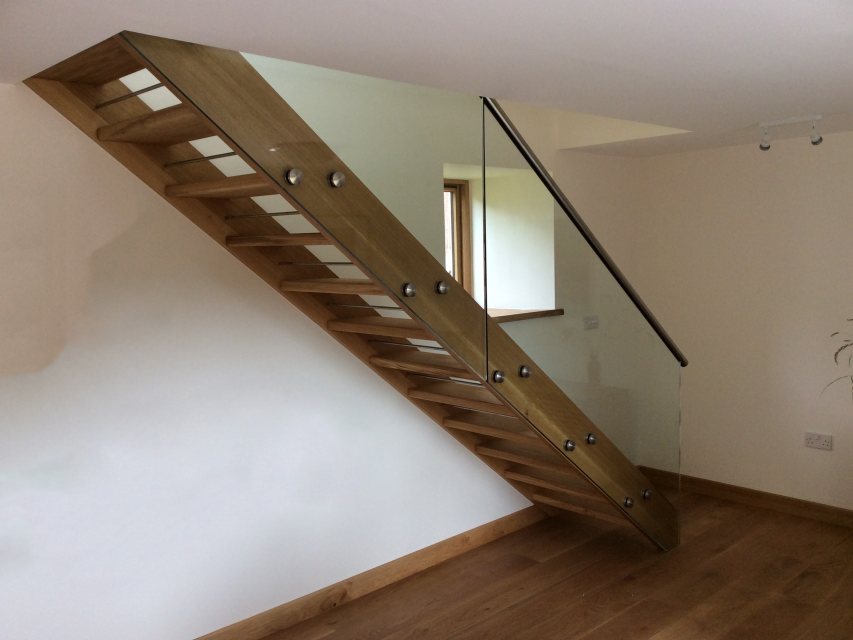

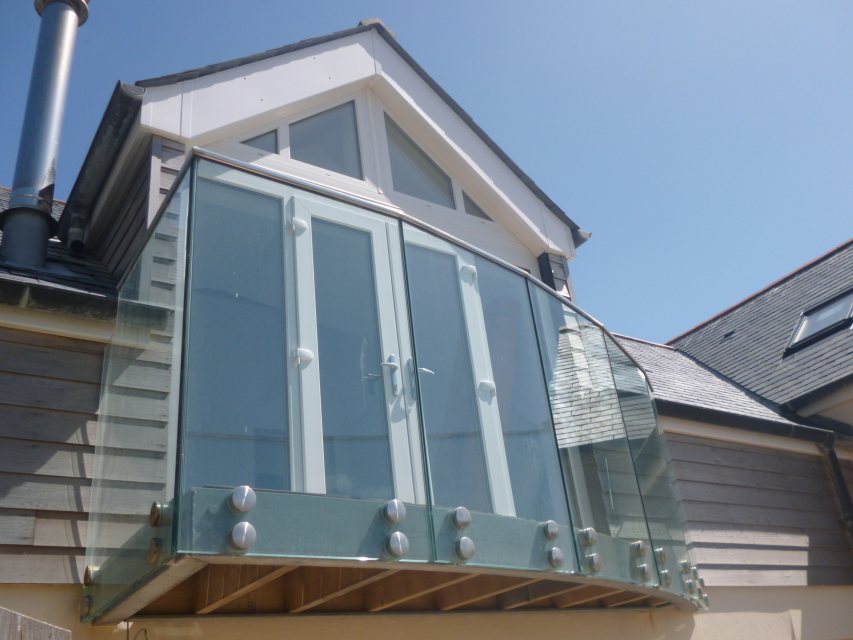

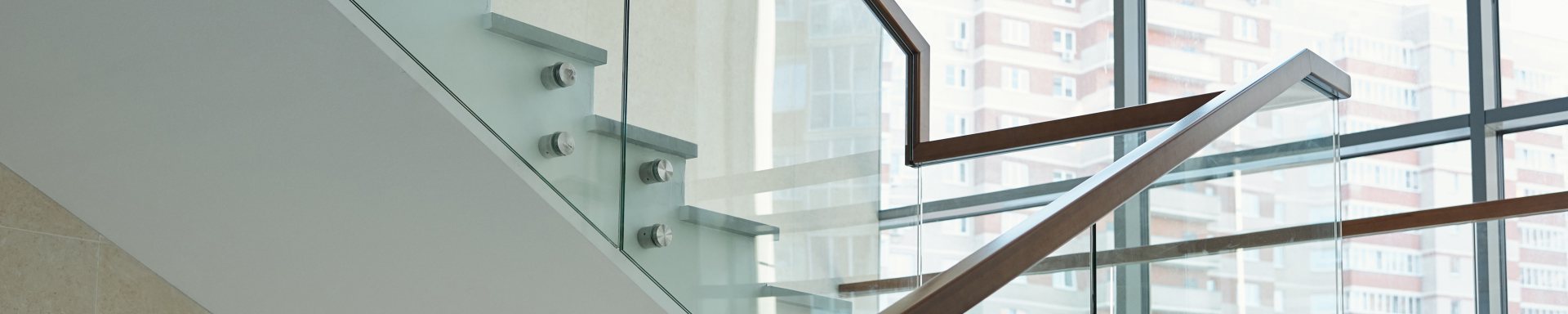

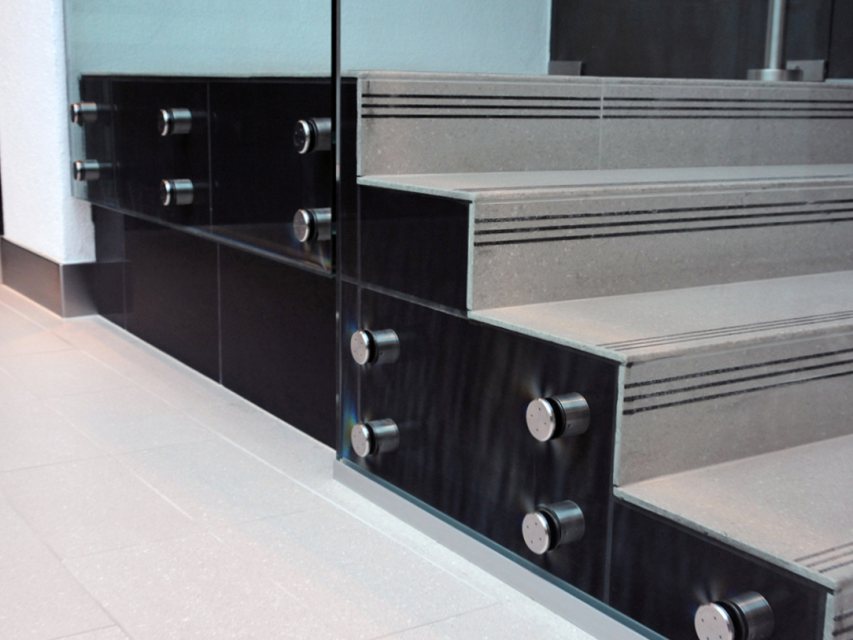

Stand-offs are the ideal solution for those seeking a frameless balustrade with a floating glass look. They are perfect for transforming a landing or staircase with a touch of elegance, opening up the space by creating clear sightlines and enhancing the flow of natural light.?
Designed to be visible, these simple yet strong stainless steel fittings have architectural appeal of their own which enhances the uncomplicated beauty of this glass installation.
Grades and Finishes
Our Stand-offs are available in grade 304 stainless steel for internal use and 316 stainless steel for external applications. They are supplied in a satin finish (320 grit) as standard or in a mirror polished finish on request.
Construction and Range

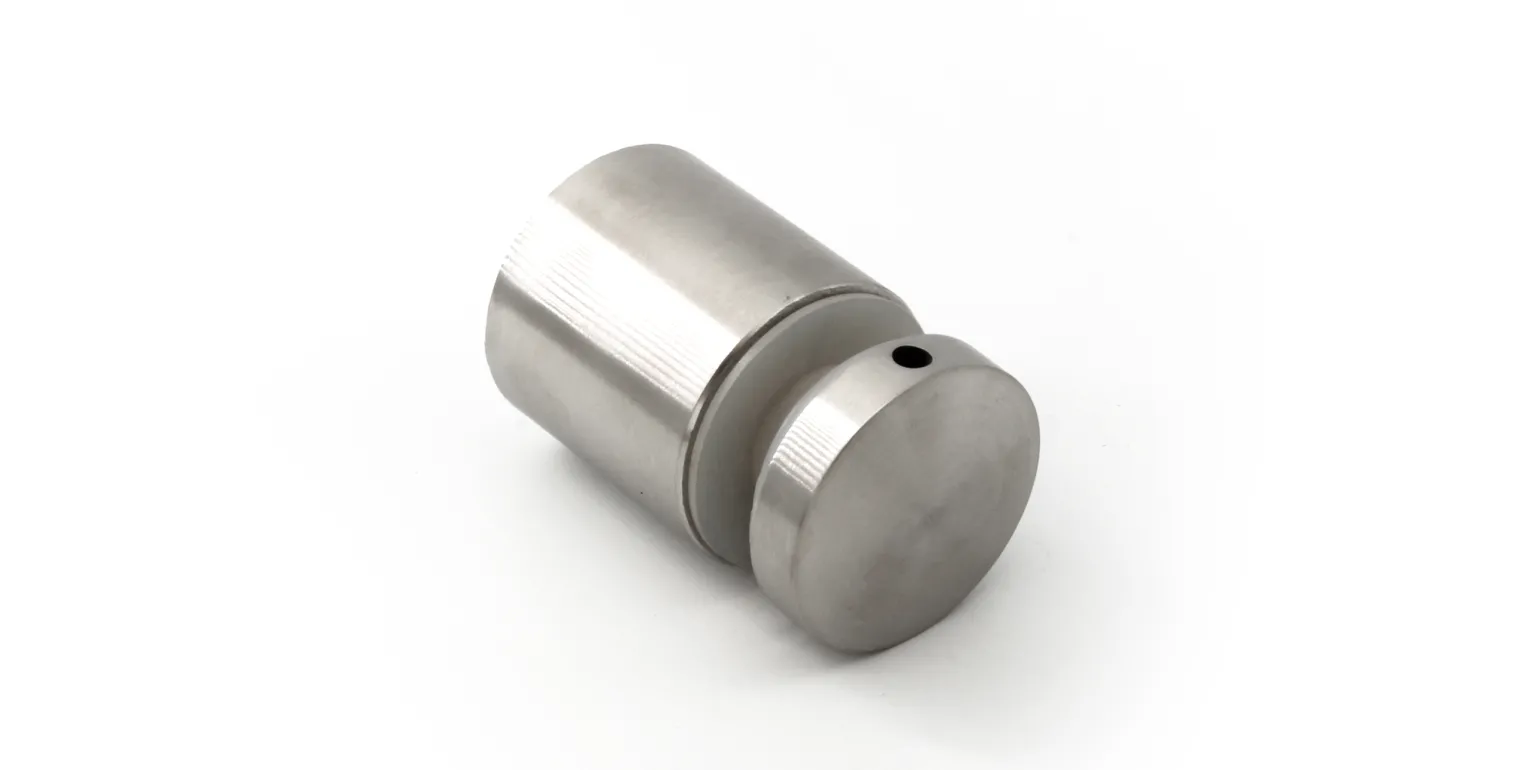

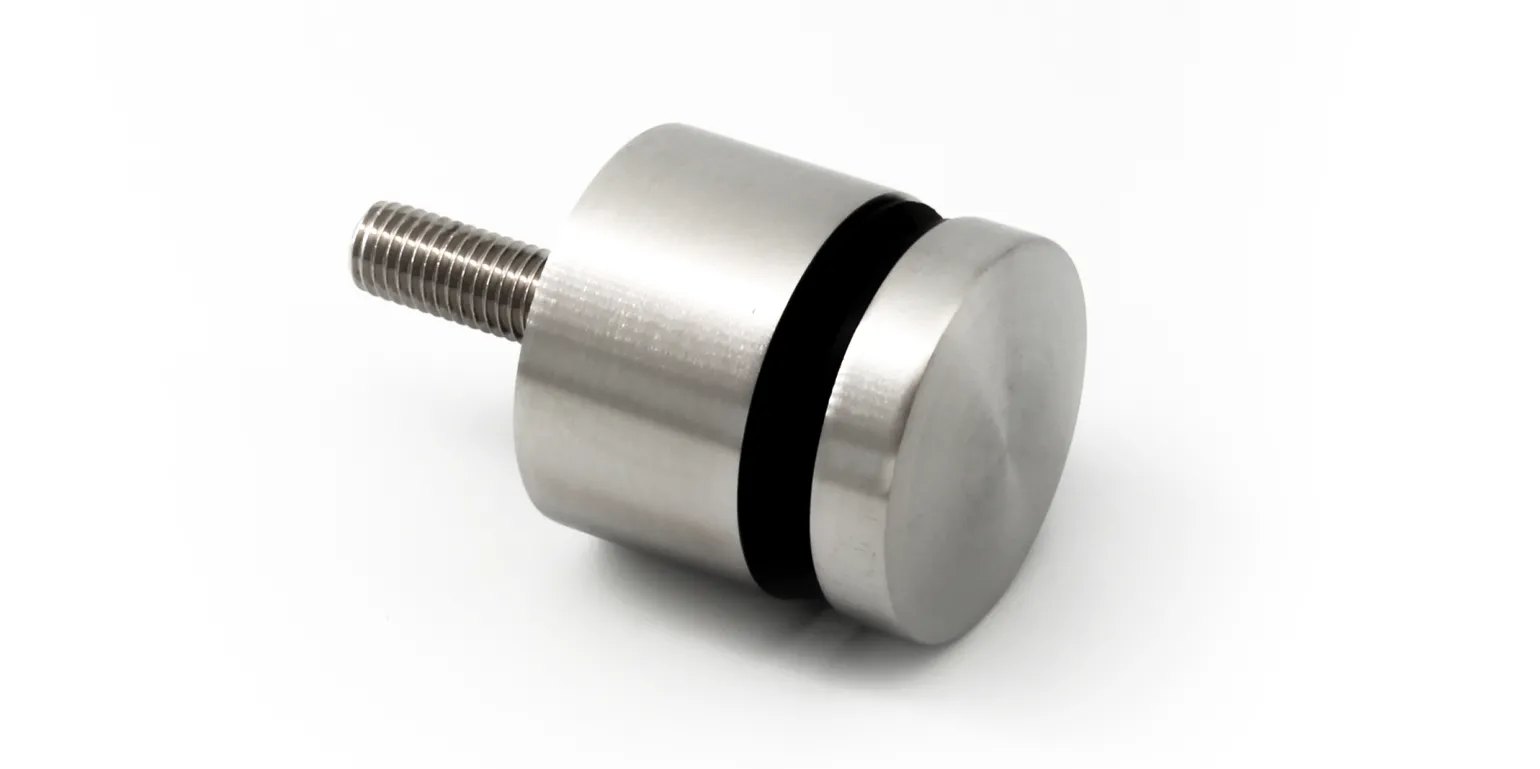

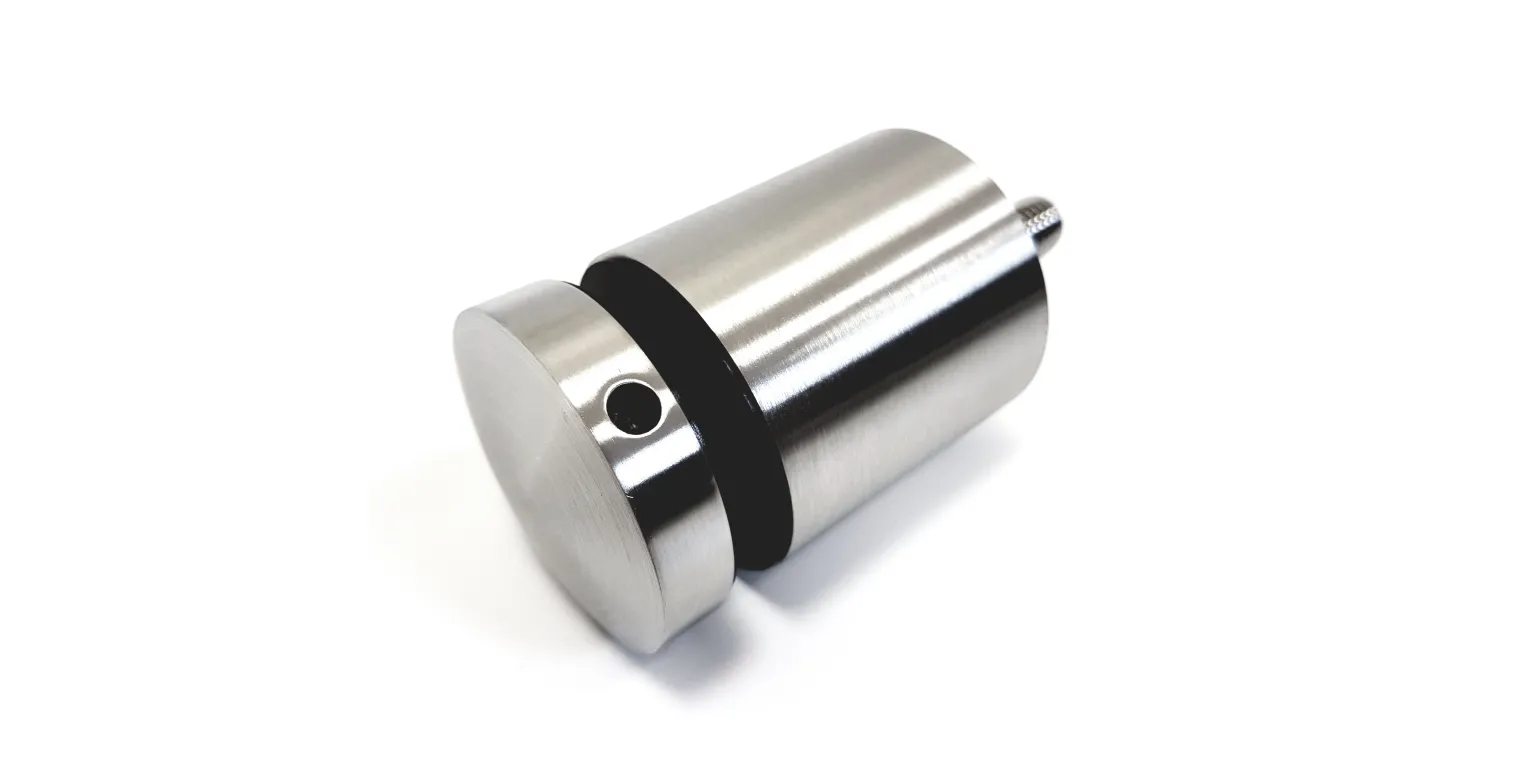

Stand-offs consist of a visually-appealing base and cap/boss that sit either side of the glass, and a connector section to enable a firm fix into a range of substrates.
A versatile choice, stand-offs are available in various material grades, base heights, diameters and thread sizes to suit a range of glass thickness and installation either indoors or outdoors.

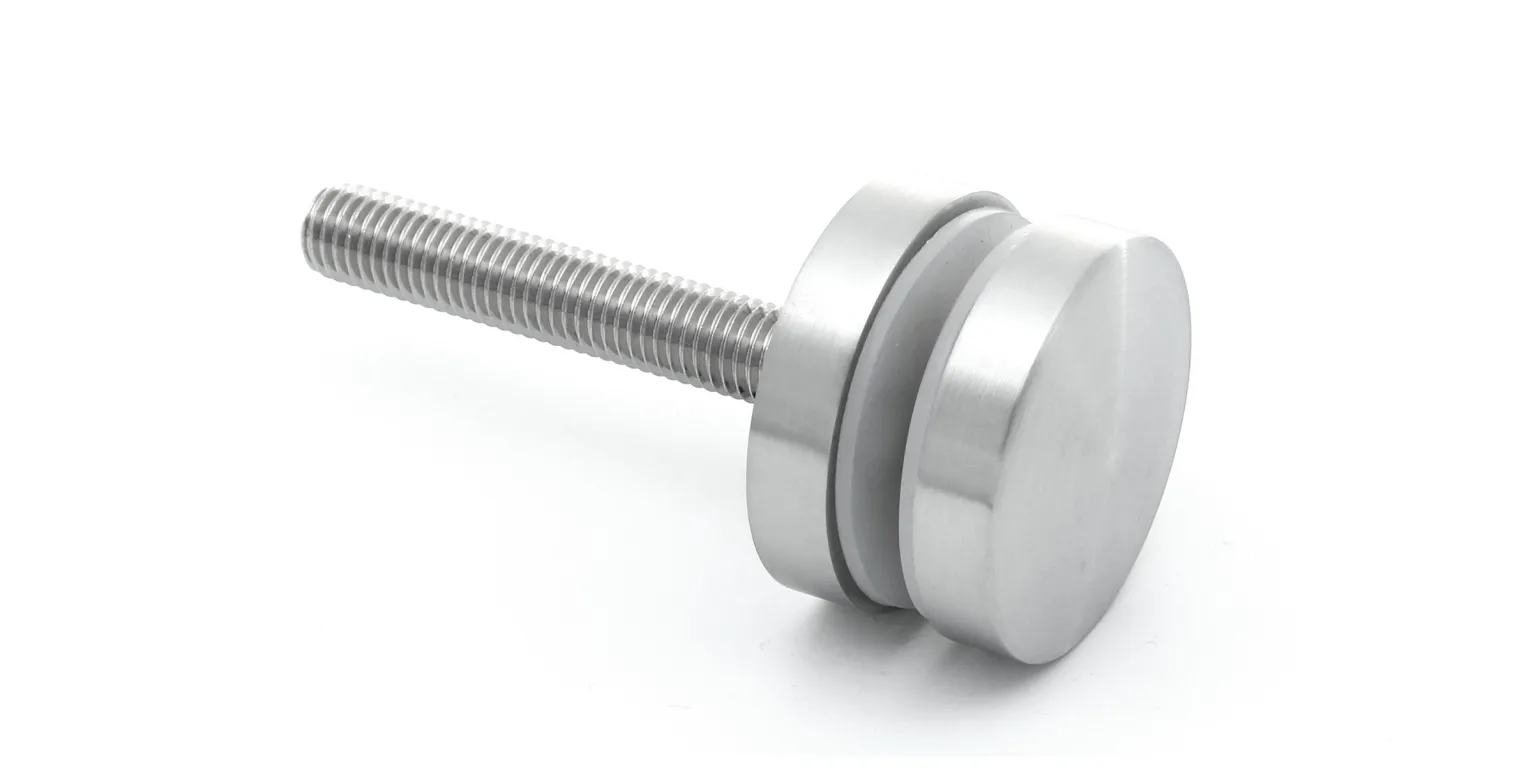

Threaded stand-offs are drilled/tapped and supplied complete with a metric thread stud projecting from the back which can be either resin-bonded into concrete, blockwork etc or bolted back to steel.
Tools
Hook Spanners are also available for the efficient and effective fitting of our Stand-Offs.
Need Technical Assistance?
For help selecting the stand-off system required, please call the BM Architectural team on 0114 254 3226 to discuss your project. Bespoke stand-off body sizes are available on request.

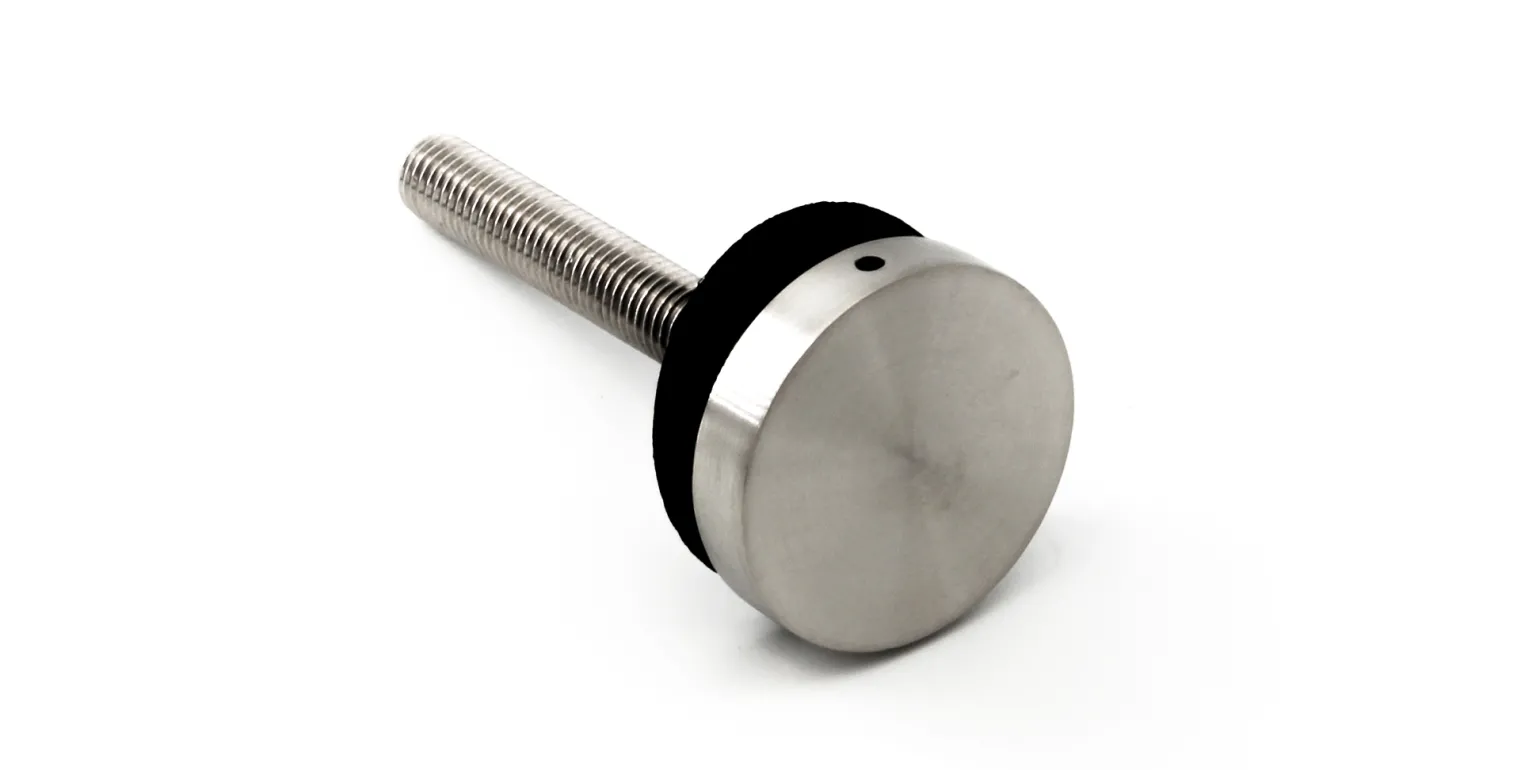

30mm Diameter Glass Stand-Off, M8
Available in 304 and 316 stainless steel with a height of 15mm or to suit 42 and 48mm posts.
Suits a glass thickness of 8-17.52mm and requires a 15mm diameter hole in glass.

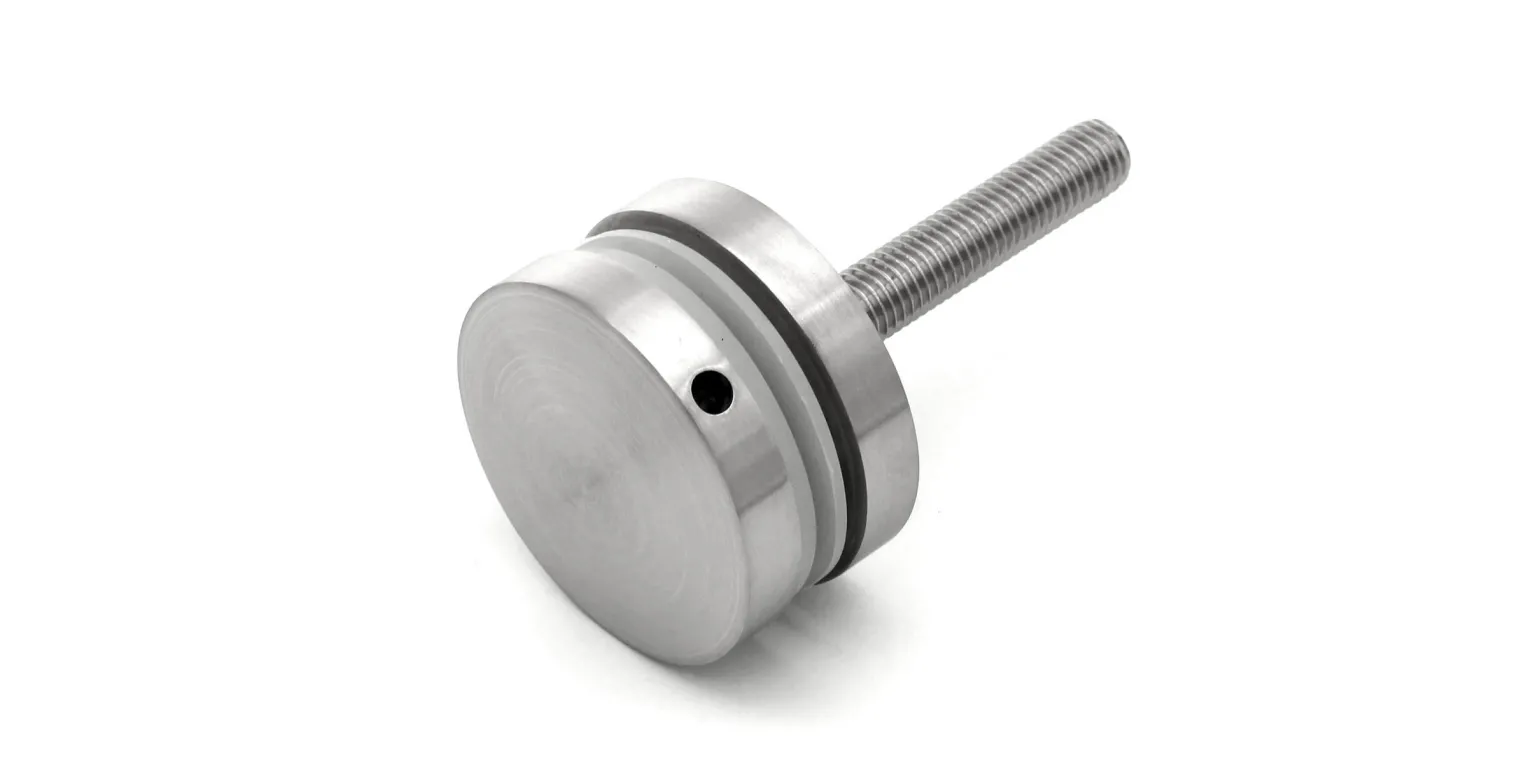

50mm Diameter Glass Stand-Off, 10mm Body, M10
Features a 10mm body and is available to fix to either circular sections (42.4, 48.3mm) or a flat surface. Supplied in either 304 or 316 stainless steel, it suits a glass thickness of 8-21.5mm and requires a 22mm diameter hole in glass.
50mm Diameter Glass Stand-Off, M10
Available in 304 and 316 stainless steel in a range of heights (10 to 50mm) and thread lengths.
Suits a glass thickness of 8-21.5mm and requires a 28mm diameter hole in glass.
50mm Diameter Glass Stand-Off, M12
Available in 304 and 316 stainless steel in a range of heights (10 to 100mm) and thread lengths.
Suits a glass thickness of 8-25.5mm and requires a 28mm diameter hole in glass.
50mm Diameter Glass Stand-Off with Additional Holes, 10mm Body, M12
Available in 304 and 316 stainless steel in one height of 10mm. Suits a glass thickness of 8-21.5mm and requires a 22mm diameter hole in glass.
50mm Diameter EazyPost Boss (only), M12
Option with boss only (without body), available in 304 and 316 stainless steel .
Requires 22mm diameter hole in glass.
60mm Diameter Glass Stand-Off, M10/M12
Available in 304 and 316 stainless steel in a range of heights (10 to 50mm) and thread lengths.
Suits a glass thickness of 8-21.5mm and requires a 22mm diameter hole in glass.
50mm Slab Connector (for M12)
Featuring an internal M12 thread, this connector suits a glass thickness of 8-21.5mm and requires a 28mm diameter hole in glass. Available in 304 and 316 stainless steel and three heights (30, 40, 50mm).
Available in 304 and 316 stainless steel and a 40mm height, this fitting suits a glass thickness of 12-31.5mm and offers unique three dimensional adjustments for quick, accurate on-site installation.
