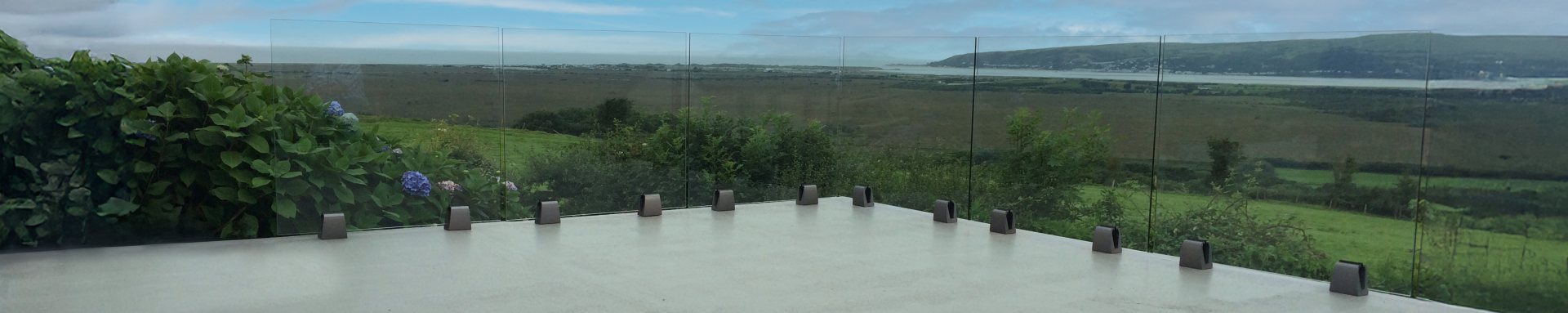

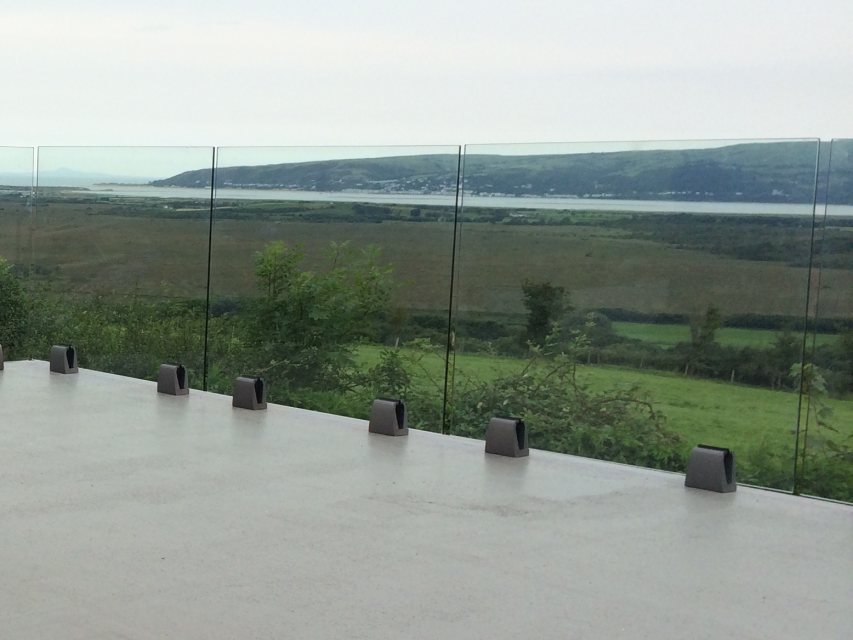

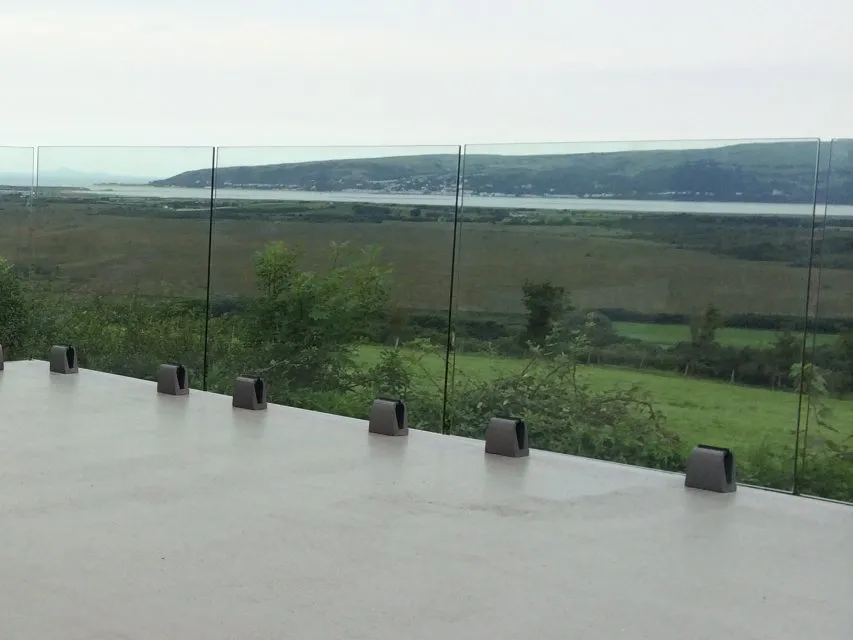

Spigots are used to create elegant, frameless glass safety fencing in a wide range of internal and external applications. They look equally at home on raised outdoor patio or decked areas and mezzanine level indoors, providing edge protection in line with BS 6180:2011 and leaving views to be enjoyed without interruption.
When compared to a balustrade constructed using continuous base channels, Spigot systems leave more glass visible - maximising views and adding to the overall elegance of the design - and they also enable water to freely drain between fixing points.
Perfect for the regular installer, Spigots are packed in boxes making them easier to store, transport and handle on site compared to channel systems.
With just two spigots required per metre, they are a quick and effective way to create a stylish safety barrier in most residential and light commercial applications where a load of up to 0.36kN or 0.74kN/m is required.
There are three base-fixed spigot systems available from BM Architectural. Contact the team on 0114 254 3226 to discuss your specific project requirements and desired look, and we’ll help you decide on the ideal system, quantity and finish.

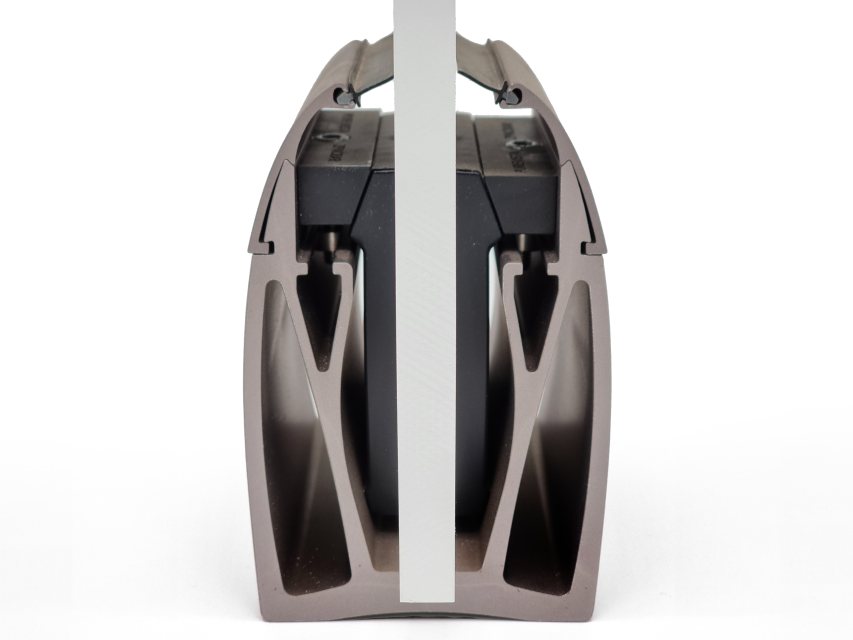

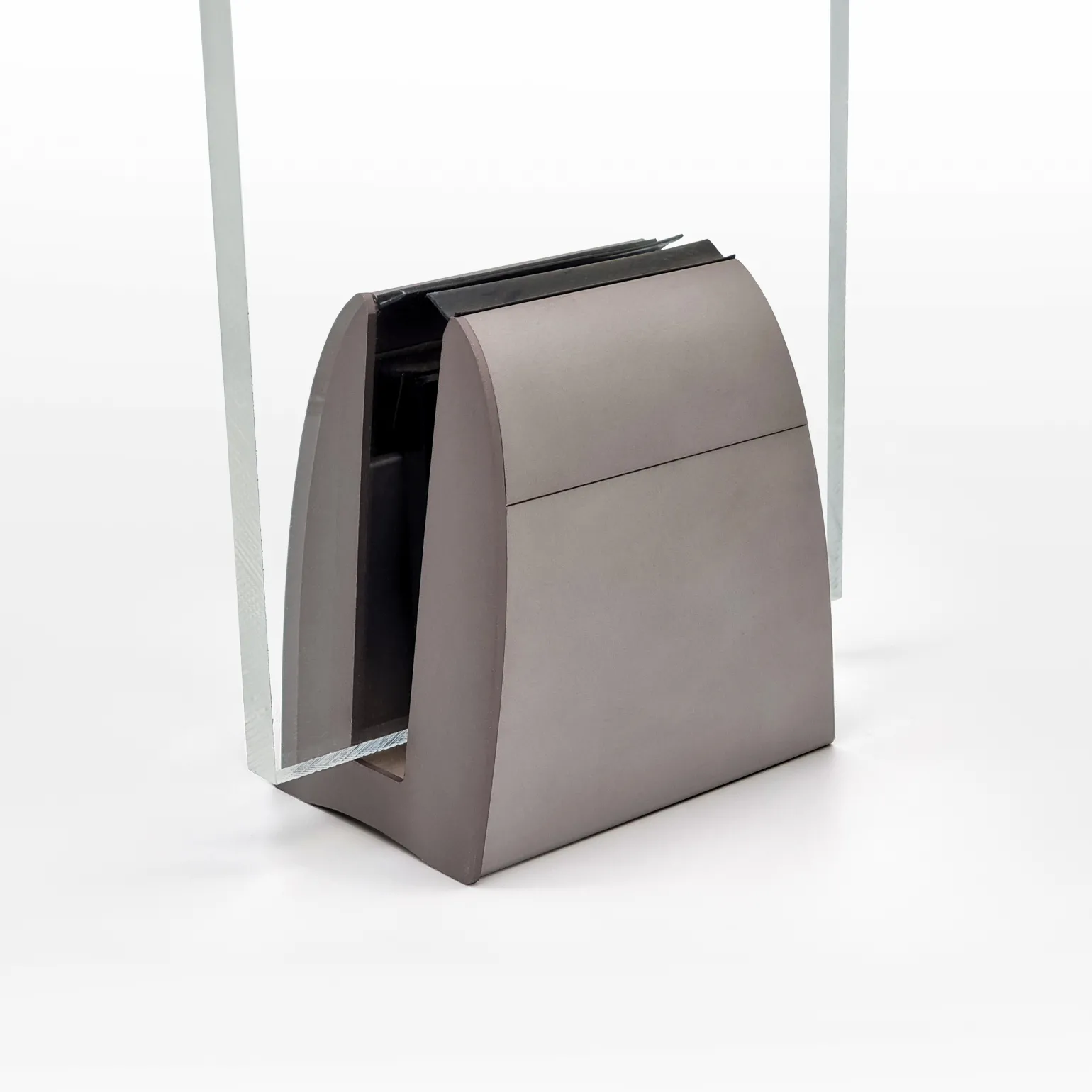

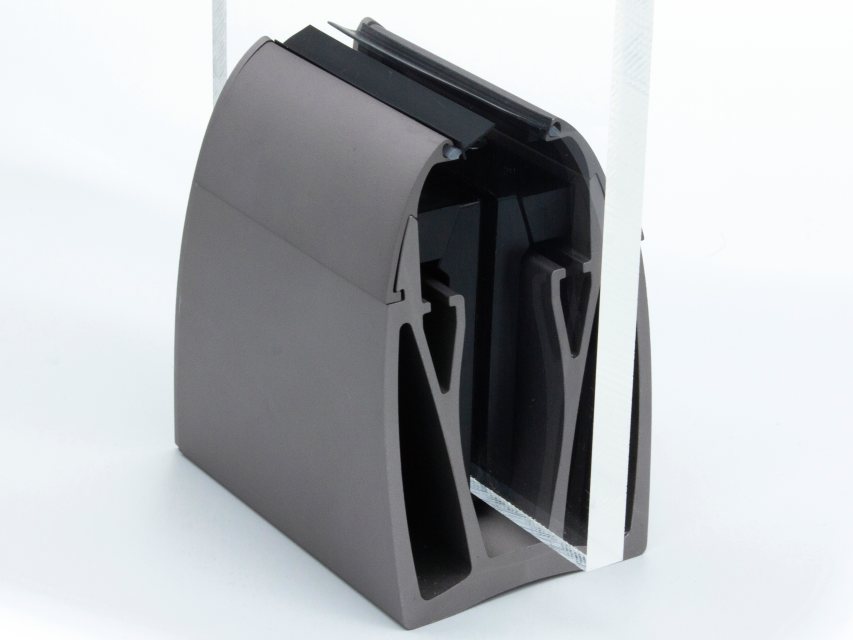

Our most popular system, EazySpigot is lightweight, compact and anodised to 20 microns for high protection from the elements. Available in four sizes to suit a glass thickness of either 12, 15, 17.5 or 21.5mm, the EazySpigot system is available in anodised Graphite Grey as standard or can be supplied in any RAL colour to suit your application.
Highly adjustable and with no drilling of glass required, EazySpigot benefits from two-sided screw-clamp technology that provides a 2° adjustment angle on either side of the glass, enabling perfect alignment of glass panels - even when installed onto an uneven surface.
Dimensions: 138mm high x 125.5mm long x 91.5mm wide

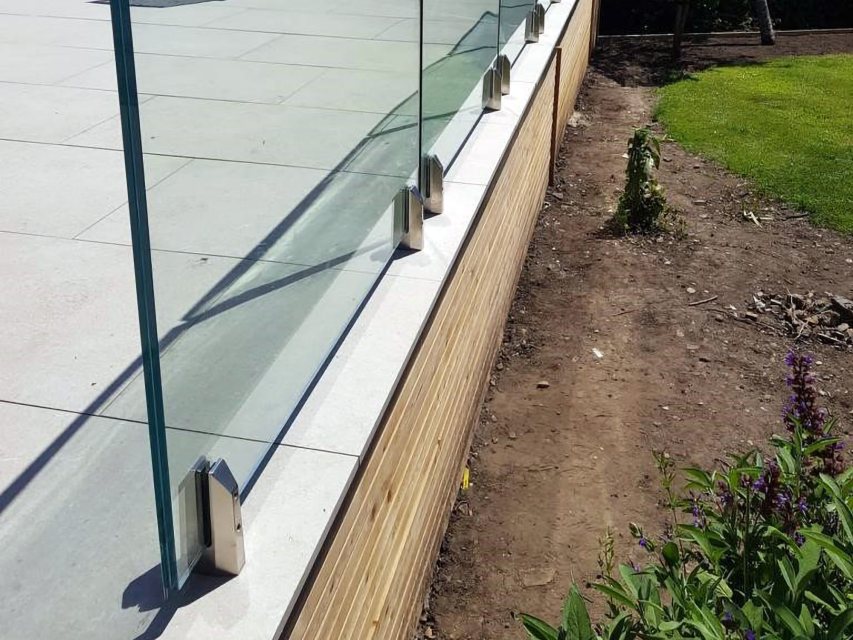

Our all-stainless steel spigot, the EazyLock Adjustable Spigot is suitable for a glass thickness of 12-25.5mm. Similar to the EazyLock continuous channel system, the tilt angle is adjustable from the safety of the inner side only, eliminating the need for plant hire on elevated applications.
Dimensions: 155mm high x 96.5mm deep and 42.5mm wide.
Glass aperture is 43mm from fixing substrate.

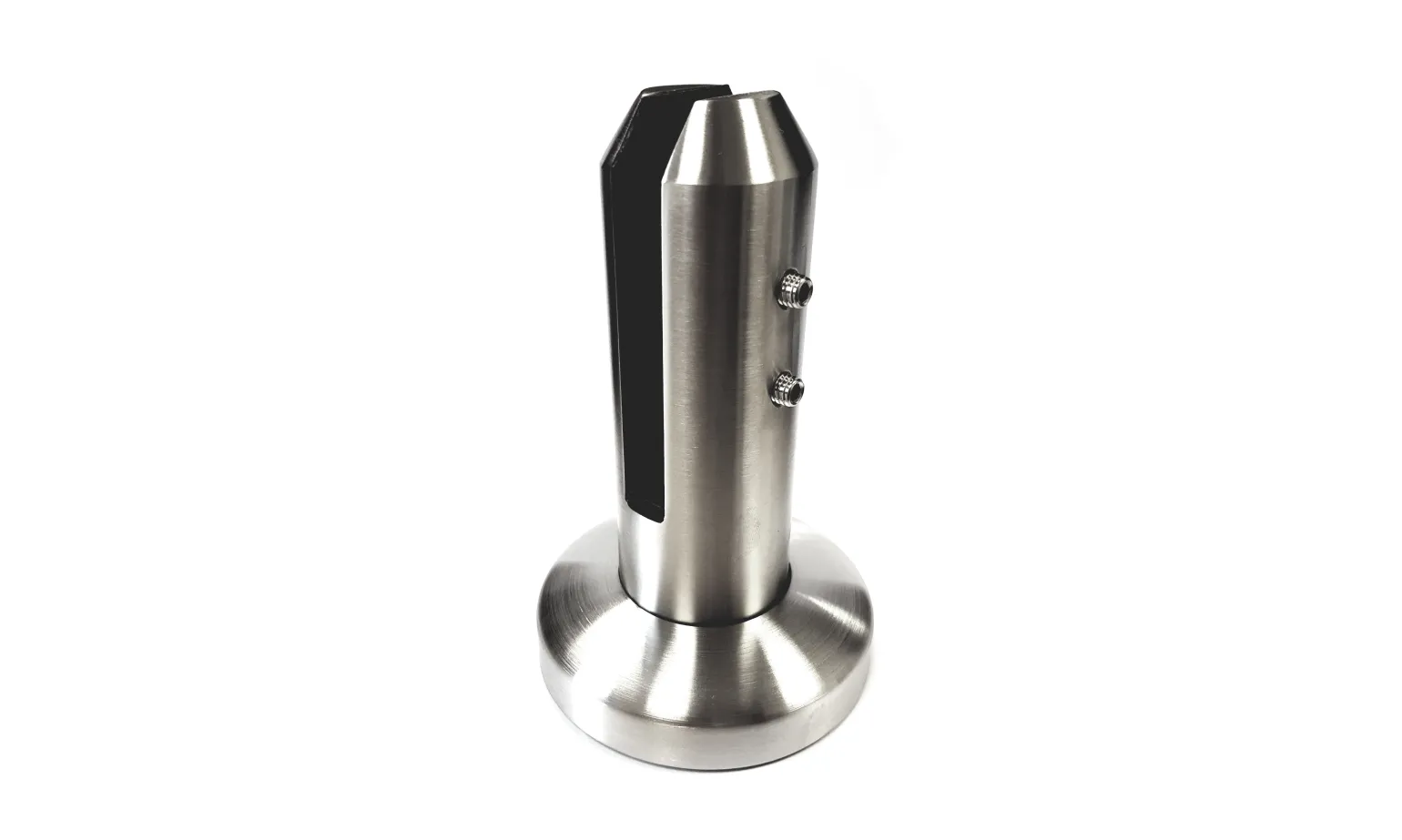

Our most slender, elegant system, Round Spigots are manufactured from Duplex stainless steel and available in either a satin (320 grit) or mirror polished finish. Round Spigots are suitable for a glass thickness of 12 -13.5mm.
Dimensions: 158mm high x 50mm body diameter, with 100mm diameter base
Glass aperture is 58mm from fixing substrate
